# Bitwise Operators in C Examples: The Booster to Your Programming Skills

## Bitwise Operators in C Examples

If you’re an aspiring programmer or a seasoned developer looking to take your C programming skills to the next level, mastering bitwise operators is an essential step in your journey. Bitwise operators allow you to manipulate individual bits within data, unleashing the true power of low-level programming and optimizing various algorithms.

In this comprehensive article, we will explore the fundamentals of bitwise operations, dive into each operator’s functionality, and provide real-world examples that demonstrate their practical applications. By the end of this journey, you’ll possess a solid grasp of bitwise operators, empowering you to write more efficient, elegant, and versatile code in C.

## Introduction

**A. What are Bitwise Operators?**

Bitwise operators are a set of operators that manipulate the bits of a number at the binary level. These operators work on a bit-by-bit basis, changing the value of a bit to either 1 or 0, depending on the operation being performed. In** C ****programming**, bitwise operators can be used with integer data types (char, int, and long).

Bitwise operators are used for things like combining two integers into one, changing the order of bits in a number, testing if two values are equal or not equal, and more. They can be very useful when working with binary data such as images or audio files.

**B. Importance of Bitwise Operators in C:**

- Efficient: Bitwise operators help programmers to write more efficient code. These operators allow us to perform complex tasks like shifting bits, checking the value of a bit, or setting a bit in just one instruction.
- Memory Management: They are also important for memory management. Bitwise operators can be used to manipulate the individual bits in a byte, which is beneficial in memory-constrained systems like embedded systems.
- Low-level hardware access: Bitwise operators are also useful for interacting with low-level hardware, like registers or memory-mapped I/O. They allow the programmer to set or clear specific bits in these hardware registers, which can have a significant impact on the execution of the program.
- Encryption and decryption: Bitwise operators are an important part of encryption and decryption algorithms. They are used to scramble and unscramble data at the bit level. This helps to secure sensitive data and make it difficult for potential attackers to read or modify.
- Graphics Manipulation:
**Bitwise operators**are also used to manipulate graphics at the pixel level. For example, they can be used to blend colors, apply filters, or shift an image. This makes it possible to create complex graphics operations and achieve a high-level of image quality.

## Understanding Bitwise Operators

**A. Basic Overview of Binary Representation:**

In computers, data is represented using bits, which are the smallest unit of information. A bit can be either 0 or 1. When multiple bits are combined together, they form binary numbers. Binary numbers are base-2 numbers, unlike decimal numbers which are base-10. In binary representation, each digit is a power of 2, starting from right to left. For example, the binary number 1010 represents the decimal number 10.

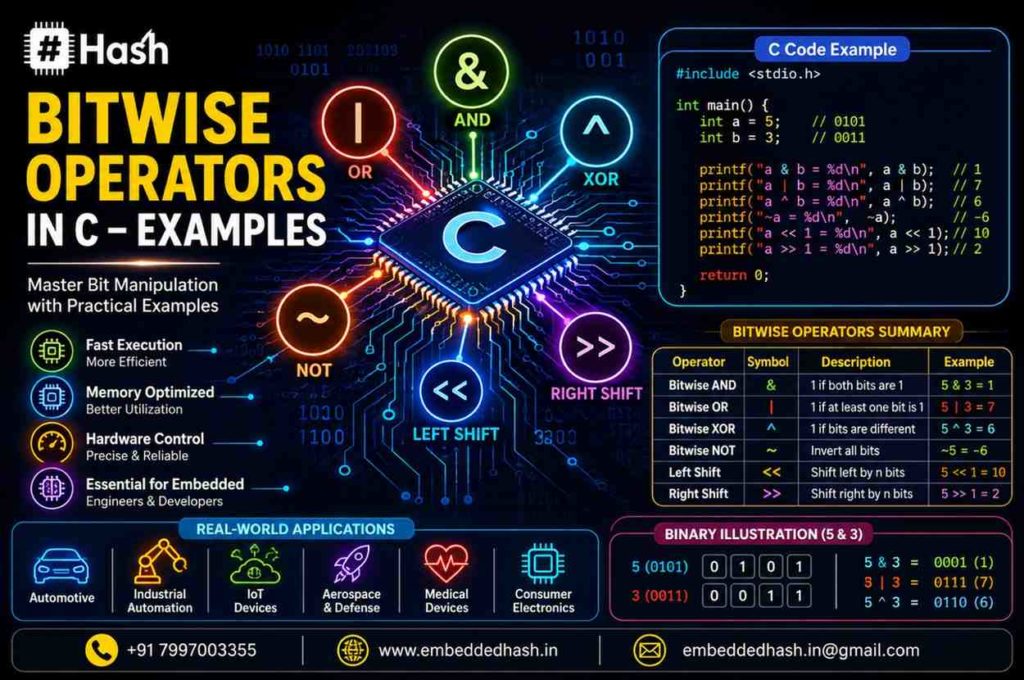

**B. Types of Bitwise Operators in C:**

C provides several bitwise operators that allow manipulation of bits at the binary level. Let’s take a look at each of these operators:

**1. AND (&) Operator:**

The AND operator performs a bitwise AND operation between two operands. It returns 1 if both bits are 1, otherwise, it returns 0. The AND operator is denoted by the ampersand symbol (&).

**2. OR (|) Operator:**

The OR operator performs a bitwise OR operation between two operands. It returns 1 if either of the two bits is 1, otherwise, it returns 0. The OR operator is denoted by the pipe symbol (|).

**3. XOR (^) Operator:**

The XOR operator performs a bitwise XOR (exclusive OR) operation between two operands. It returns 1 if the two bits are different, otherwise, it returns 0. The XOR operator is denoted by the caret symbol (^).

**4. NOT (~) Operator:**

The NOT operator is a unary operator that performs a bitwise negation operation on a single operand. It flips the bits of the operand, converting 1s to 0s and 0s to 1s. The NOT operator is denoted by the tilde symbol (~).

**5. Left Shift (<<) Operator:**

The left shift operator shifts the bits of the left operand to the left by a specified number of positions. It fills the empty bits on the right with zeros. The left shift operator is denoted by two consecutive less than symbols (<<).

**6. Right Shift (>>) Operator:**

The right shift operator shifts the bits of the left operand to the right by a specified number of positions. It fills the empty bits on the left with the sign bit (for signed integers) or with zeros (for unsigned integers). The right shift operator is denoted by two consecutive greater than symbols (>>).

These bitwise operators can be combined with assignment operators to perform compound operations, such as AND-assignment (&=), OR-assignment (|=), **XOR**-assignment (^=), and so on. These compound operators allow for concise and efficient coding.

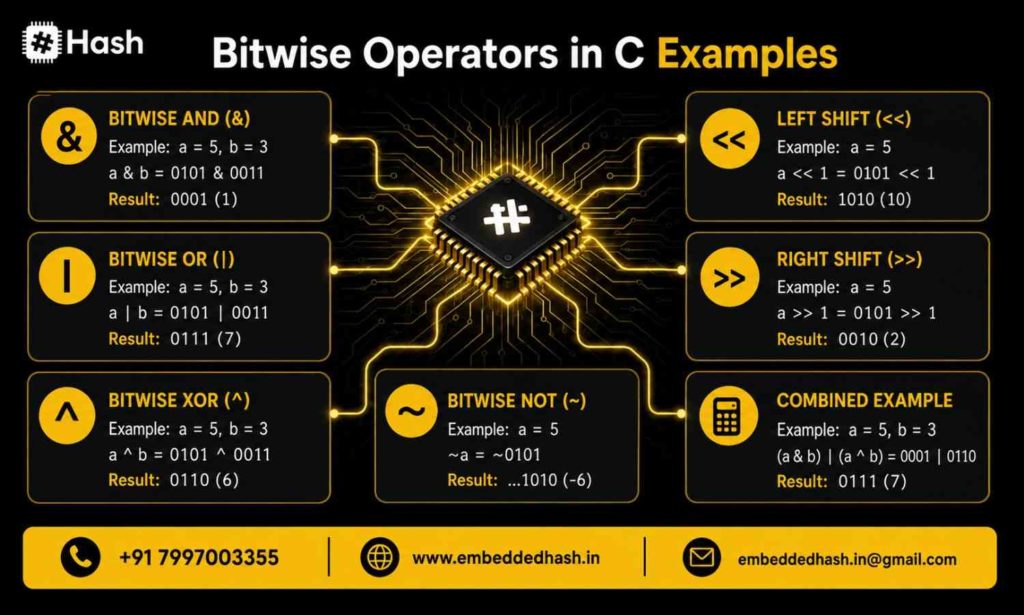

### Practical Examples of Bitwise Operators in C:

**A. Checking Even or Odd Numbers with Bitwise AND (&) Operator:**

The bitwise AND operator can be used to check whether a number is even or odd. When we perform a bitwise AND operation between a number and 1, the result will be 1 if the number is odd and 0 if the number is even. Here’s an example:

#include <stdio.h>int main() { int num = 6; if (num & 1) { printf(“%d is odd\n”, num); } else { printf(“%d is even\n”, num); } return 0;}

In this example, we check if the number num is odd or even by performing a bitwise AND operation between num and 1. If the result is non-zero (true), we print that the number is odd. Otherwise, we print that the number is even. In this case, since 6 & 1 is 0, the output will be 6 is even.

**B. Setting Bits in a Number using Bitwise OR (|) Operator:**

The bitwise OR operator can be used to set specific bits in a number. By performing a bitwise OR operation between a number and a mask that has the desired bits set to 1, those bits will be set in the result. Here’s an example:

#include <stdio.h>int main() { int num = 10; // Binary: 0000 1010 int mask = 3; // Binary: 0000 0011 int result = num | mask; // Binary: 0000 1011 printf(“Result: %d\n”, result); // Output: 11 return 0;}

In this example, we want to set the first two bits in the number num. We create a mask mask with those bits set to 1. Then, by performing a bitwise OR operation between num and mask, the result will have those bits set. In this case, the output will be Result: 11.

**C. Toggling Bits in a Number using Bitwise XOR (^) Operator:**

The bitwise XOR operator can be used to toggle (flip) specific bits in a number. By performing a bitwise XOR operation between a number and a mask that has the desired bits set to 1, those bits will be toggled (flipped) in the result. Here’s an example:

#include <stdio.h>int main() { int num = 7; // Binary: 0000 0111 int mask = 5; // Binary: 0000 0101 int result = num ^ mask; // Binary: 0000 0010 printf(“Result: %d\n”, result); // Output: 2 return 0;}

In this example, we want to toggle the second and third bits in the number num. We create a mask mask with those bits set to 1. Then, by performing a bitwise XOR operation between num and mask, the result will have those bits toggled. In this case, the output will be Result: 2.

**D. Flipping Bits in a Number using Bitwise NOT (~) Operator:**

The bitwise NOT operator is a unary operator that can be used to flip (invert) all the bits in a number. By applying the bitwise NOT operation to a number, all the 0s will become 1s and all the 1s will become 0s. Here’s an example:

#include <stdio.h>int main() { int num = 5; // Binary: 0000 0101 int result = ~num; // Binary: 1111 1010 printf(“Result: %d\n”, result); // Output: -6 return 0;}

In this example, we want to flip all the bits in the number num. By applying the bitwise NOT operation to num, all the bits are inverted. In this case, the output will be Result: -6. It is important to note that the result is in two’s complement form.

**E. Multiplying by Powers of 2 with Left Shift (<<) Operator:**

The left shift operator can be used to multiply a number by powers of 2. By shifting the bits of a number to the left by a specified number of positions, the value will be effectively multiplied by 2 raised to the power of the shift amount. Here’s an example:

#include <stdio.h>int main() { int num = 3; // Binary: 0000 0011 int shiftAmount = 2; int result = num << shiftAmount; // Binary: 0000 1100 printf(“Result: %d\n”, result); // Output: 12 return 0;}

In this example, we want to multiply the number num by 2 raised to the power of 2. By shifting the bits of num to the left by 2 positions, the value is effectively multiplied by 4. In this case, the output will be Result: 12.

**F. Extracting Data from Fixed-Size Fields with Right Shift (>>) Operator:**

The right shift operator can be used to extract data from fixed-size fields in a number. By shifting the bits of a number to the right by a specified number of positions, the bits that are shifted out of the field will be discarded, and the remaining bits will represent the desired data. Here’s an example:

#include <stdio.h>int main() { int num = 203; // Binary: 1100 1011 int shiftAmount = 4; int result = num >> shiftAmount; // Binary: 0000 1100 printf(“Result: %d\n”, result); // Output: 12 return 0;}

In this example, we want to extract the data from the rightmost 4 bits of the number num. By shifting the bits of num to the right by 4 positions, the remaining bits represent the desired data. In this case, the output will be Result: 12.

### Real-world Applications of Bitwise Operators

**A. Low-level Programming Examples:**

Bitwise operations are commonly used in low-level programming scenarios, where direct manipulation of bits is required. Some examples include:

- Device drivers: Bitwise operators are used to access and manipulate hardware registers, which represent specific functionalities of a device. For example, setting or clearing specific bits to control features or retrieve status information.
- Bitfields: Bitfields are used to compactly store and manipulate multiple boolean or enumerated values within a single variable. Bitwise operators are used to set, toggle, or retrieve values from bitfields.
- File systems: Bitwise operations are used in file systems to manipulate file attributes and permissions. For example, setting read-only, hidden, or executable attributes using bitwise OR and AND operations.

**B. Optimization Techniques with Bitwise Operators:**

Bitwise operators can be employed to optimize code and reduce execution time or memory footprint. Some optimization techniques include:

- Bit Masking: Bitmasks are used to select or ignore specific bits in a value. By using bitwise AND and OR operations with appropriate masks, efficient condition checks and operations can be performed.
- Data compression: Bitwise operations are utilized in compression algorithms like Huffman coding or run-length encoding, where bits are packed or unpacked to optimize storage or transmission.
- Bit manipulation tricks: Bitwise operators can be used to perform math operations, such as multiplying or dividing by powers of 2, without using arithmetic operators. These tricks are useful in situations where efficiency is crucial.

**C. Bitwise Operations in Networking:**

Networking protocols involve the transmission, decoding, and manipulation of binary data. Bitwise operators play a vital role in various aspects, including:

- IP addressing: IP addresses are represented as 32-bit integers, and bitwise operations are used to extract and manipulate individual octets or bits, such as subnet masking or subnetting.
- Network packet manipulation: Bitwise operators are utilized to manipulate packet fields in protocols like TCP, UDP, or ICMP. This enables operations such as setting flags, fragmenting or reassembling packets, or calculating checksums.
- Network security: Bitwise operations can be employed in cryptography algorithms and protocols to perform operations like bitwise XOR for encryption or decryption, bit-level substitutions, or filtering specific bits of a cipher.

**D. Bit Manipulation in Embedded Systems:**

**Embedded systems **often have limited resources, and bitwise operations are valuable for efficient programming. Some use cases include:

- Microcontroller configurations: Bitwise operators are used to set or clear configuration bits for various system registers, controlling system features or peripheral functionalities.
- Bit-packed data structures:
**Embedded systems**often involve data serialization and communication with external devices. Bitwise operators can be used to pack or unpack data into bitfields for efficient storage and transmission. - Real-time operations: In time-critical systems, bit manipulation can be utilized to encode or decode data or perform bitwise calculations with minimal overhead, ensuring fast execution and responsiveness.

## Conclusion

In conclusion, the practical examples of Bitwise Operators in C have demonstrated their incredible utility and versatility in the world of programming. By mastering Bitwise Operators in C examples, programmers can elevate their coding proficiency and gain a deeper appreciation for low-level programming techniques.

Armed with this newfound knowledge, you can confidently leverage Bitwise Operators to improve code efficiency, tackle intricate programming challenges, and unleash the true potential of your **C programming** skills. Bitwise Operators in C examples truly hold the key to unlocking the full potential of your programming prowess.

#### Frequently Asked Questions : Bitwise Operators in C Examples

Bitwise operators are operators in C that operate on individual bits of operands, instead of the whole value. They include operators like AND (&), OR (|), XOR (^), complement (~), left shift (<<), and right shift (>>).

Bitwise operators offer fine-grained control over individual bits of data, allowing for efficient manipulation and optimizations in low-level programming scenarios. They can be used for tasks such as bit masking, bit manipulation, setting or clearing specific bits, and more.

Real-world applications range from low-level programming tasks like device drivers and file systems, to optimization techniques, networking protocols, and embedded systems. For example, they can be used in network packet manipulation, compression algorithms, microcontroller configurations, and more.

You can use the bitwise AND (&) operator with 1 to check the least significant bit of a number. If the result is 1, the number is odd; if it’s 0, the number is even.

Bit masking involves using a mask with specific bits set to perform operations like extracting certain bits or filtering out others. It is commonly used with bitwise AND (&) and OR (|) operators to manipulate and select individual bits.

Yes, bitwise operators can be used for code optimization by providing efficient ways to manipulate bits, perform calculations, or compactly store multiple boolean values within a single variable.

Bitwise operators play a critical role in protocols like IP addressing, where they are used to extract and manipulate individual octets or perform subnet masking. They are also used in packet manipulation, security operations, and checksum calculations.

Yes, bitwise operators in C are portable and can be used across different platforms and compilers. They operate at the bit level and follow well-defined behavior, regardless of the underlying hardware or system.

When using bitwise operators, it’s important to ensure you have a good understanding of the bit representation of data and the expected behavior of the operators. Additionally, care should be taken to avoid unintended side effects or undefined behavior.

While bitwise operators provide direct manipulation of individual bits, some alternate approaches include using higher-level abstractions or library functions that encapsulate bitwise operations. However, bitwise operators offer precise control and are often more efficient in low-level scenarios.
